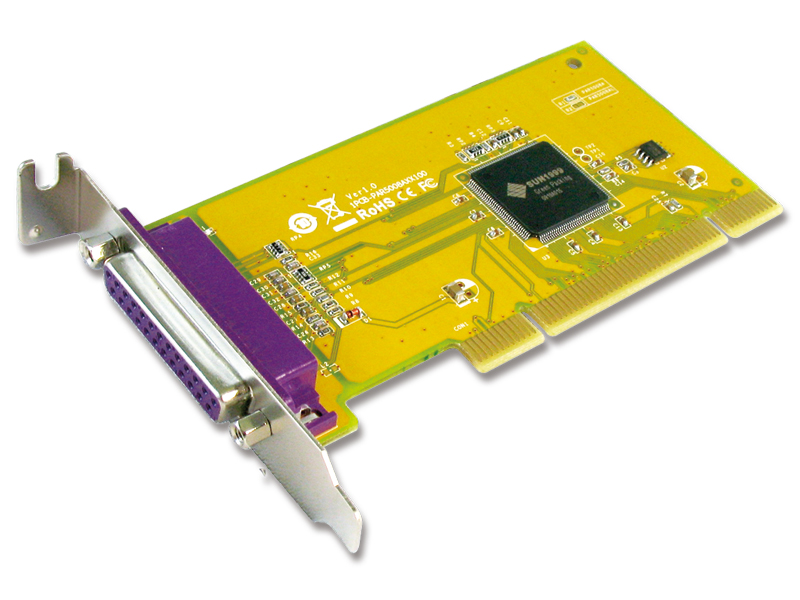

Low Profile 1 Parallel Card ( CTR5008AL )


Low Profile 1 Parallel Card
Low Profile 1 Parallel Card
Model No: CTR5008AL

Category: PCI Parallel Port Card

Availability : In Stock

Reviews   Enquiry
Email To Friend
Approx delivery time 2-7days. Delivery charges may vary. Product may vary from the picture.

1-port IEEE1284 Parallel Universal PCI Low Profile Board



Introduction

SUNIX PAR5008AL PCI Parallel card enables users to add or expand one additional ECP/EPP/SPP/BPP communication port on their PC-based system for connecting their parallel devices. It is ideal for printers, IC programmers, ZIP Drives, or any Parallel devices*. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in any slim size PC-based system with low profile bracket structure. SUNIX PAR5008AL card is designed with SUNIX high performance and realizable parallel connectivity controller, SUN1989 and as well built with many of SUNIX advanced features and technologies, making it the advanced and high efficient solution for commercial and industrial automation applications.


Features

  • High reliability SUNIX SUN1989 Parallel controller on-board.
  • Expand single IEEE1284 Parallel port on system.
  • Universal PCI compatible with 64/32-bit PCI-X/PCI Bus and 3.3/5V connector key.
  • Compliance with PCI 33MHz Version 3.0/2.3/2.2/2.1 specification.
  • Support IEEE 1284-1994 parallel port standard
        ECP (Enhance Capacity Port) / EPP (Enhance Parallel Port)
        SPP (Standard Parallel Port) / BPP (Bi-direction Parallel Port).
  • Auto-switching between ECP/EPP/SPP/BPP modes without configuration.
  • Plug-n-Play, I/O address and IRQ assigned by system.
  • Low profile bracket design idea for slim or portable PC.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS.

Specifications

Description
Product Description 1-port IEEE1284 Parallel Universal PCI Low Profile Board

Parallel Communication
Interface IEEE1284
Controller SUNIX SUN1989
Bus Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1
No. of Port 1-port
IRQ & IO Assigned by System
FIFO 16 byte (Hardware)
Signal SPP/ECP/EPP/BPP
Speed Maximum 1.8MBps
PCB connector DB25 Female

Driver Support
Microsoft Client Windows XP/Vista/7/8 (X86/X64)
Microsoft Server Windows 2000/2003/2008 (X86/X64)
Microsoft Embedded Windows XP Embedded/POS Ready 2009/Embedded System 2009
Linux Linux 2.4.x / 2.6.x
DOS DOS

Regulatory Approvals
Hardware EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS
Software Microsoft WHQL Windows
• Microsoft Client: XP/Vista/7 (X86/X64)
• Microsoft Server: 2000/2003/2008 (X86/X64)

Environment
Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension
PCB Dimension 120 x 61 mm
Bracket Low Profile 80 mm
Bracket Space 1


Note:
* Do not support LPT Key Locker Parallel device.
* LPT port does not support legacy 278/378 ISA address under Windows nor Linux operation systems, but only DOS mode.
