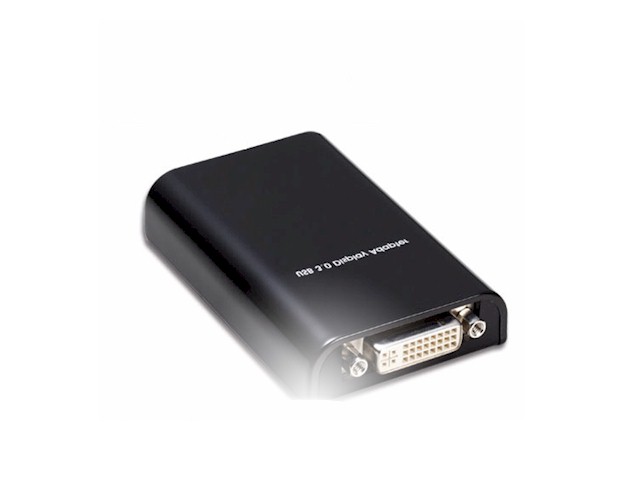

USB 3.0 to DVI Adaptor Supports 204 ( CB-USB3-05 )

The USB 3.0 Display Adapter is a device which enables connection to second display device to a computer using USB 3.0 port. With this convenient design, it can connect up to 6 display devices to a computer without installing extra video cards. Once the driver has been installed, the USBattached monitor will be enabled immediately. No function key on the adapter and there is no need to reboot the operating system after unplugging the USB adapter.

System performance is an important issue when using multiple monitors. Another benefit of this adapter is that it occupies little computer resource; ensuring users get quality display without comprising computer performance.



• Add-on monitor, LCD or projector through a single USB 3.0 port hot-plug; add or remove monitor without system reboot
• Small in size, works with all DVI-I displays.
• Supports High Resolution up to 2048x1152
• Video streaming is supported up to 1080p

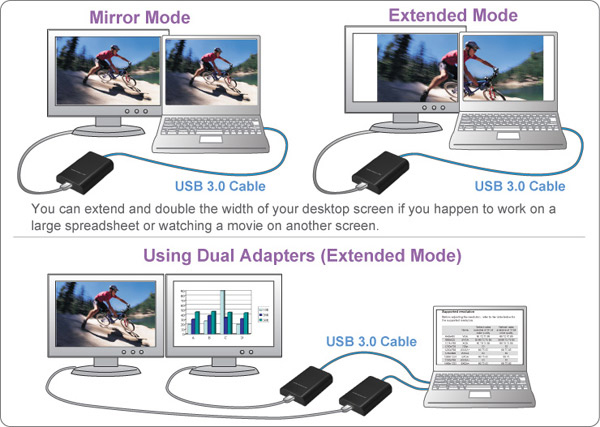

• Extend and Mirror mode support.
• Resumes from hibernation and suspend modes
• Supports up to 6 USB display adapters to work simultaneously





• Windows XP® Home or Professional (Including Table edition) SP2 or SP3,
  *Note: The adapter does not support Windows XP® 64bit
• Windows Vista® SP1/sp2 (32-bit or 64-bit)
• Windows 7® (32-bit or 64 bit)





Host Interface	USB 3.0
Video Interface	DVI
Connectors	Video output: DVI HDDE 30pin female connector Host upstream link: USB3.0 Micro B Type Connector
Connectivity	Up to 6 adapters on a computer
RAM	512Mb DDR2 SDRAM
Power Mode	Bus-powered
Power Consumption	Operating Power : 340 mA
Operation System Support	Windows XP® Home or Professional SP2 or SP3, Windows Vista® SP1 or SP2 (32-bit or 64-bit), Windows 7® (32-bit or 64-bit)
Supported Modes	Extended Desktop (Default), Mirrored Desktop, Primary Display
Housing	ABS Plastic
Dimensions	84.5 (L) x 55.5 (W) x18 (H) mm
Operating temperature	10-40 degree
Storage temperature	-10~80degree
Humidity	< 85% non-condensing
Resolutions, Refresh rate and color depth	640x480 VGA 60 72 75 85 60 72 75 85 800x600 SVGA 56 60 72 75 85 56 60 72 75 85 1024x768 XGA 60 70 75 85 60 70 75 85 1280x720 720p 60 60 1280x768 WXGA+ 60 75 85 60 75 85 1280x800 WXGA 60 60 1280x1024 SXGA 60 75 85 60 75 1366x768 WXGA+ 60 60 1400x1050 SXGA+ 60 75 85 60 75 85 1600x1200 UXGA 60 60 1680x1050 WSXGA+ 60 60 1920x1080 1080p 60 60 1920x1200 WUXGA 60 60 2048x1152 QXGA 60 60 Note that interlaced modes and reduced blanking modes are not supported.
USB Cable	Separated from the body Type: USB 3.0 Type A (Male) to Micro USB 3.0 (Female)

* Specification is subject to change without further notice.
